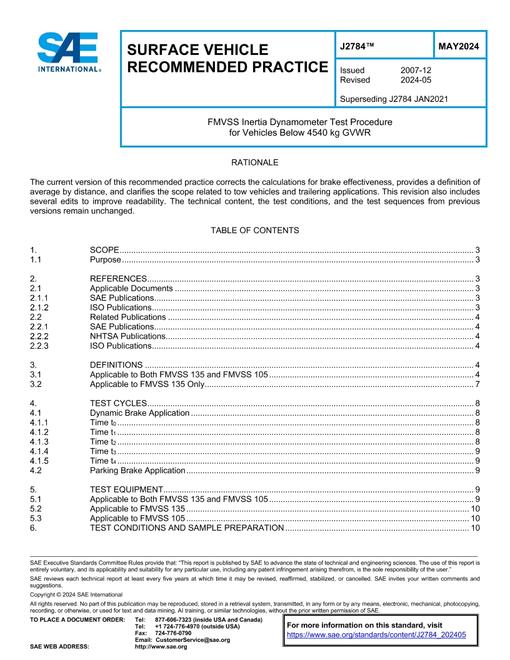

SAE J2784_202405

This document derives from the Federal Motor Vehicle Safety Standards (FMVSS) 105 and 135 vehicle test protocols as single-ended inertia-dynamometer test procedures. The test sequences enable brake output measurement friction material effectiveness and corner performance in a controlled and repeatable environment. This SAE Document also includes optional sections for parking brake output performance for rear brakes with hydraulic or Electric Park Brakes (EPB). It applies to brake corners from vehicles covered by the FMVSS 105 and 135 when using the appropriate brake hardware and test parameters. The FMVSS 135 applies to all passenger cars and light trucks up to 3500 kg of gross vehicle weight (GVWR). The FMVSS 105 applies to all passenger cars multi-purpose vehicles buses and trucks above 3500 kg of GVWR. This document does not include testing for school bus applications or vehicles equipped with hydraulic brakes with a GVWR above 4540 kg.

Product Details

Published:

05/24/2024

File Size:

1 file 1.3 MB

Note:

This product is unavailable in Ukraine Russia Belarus
