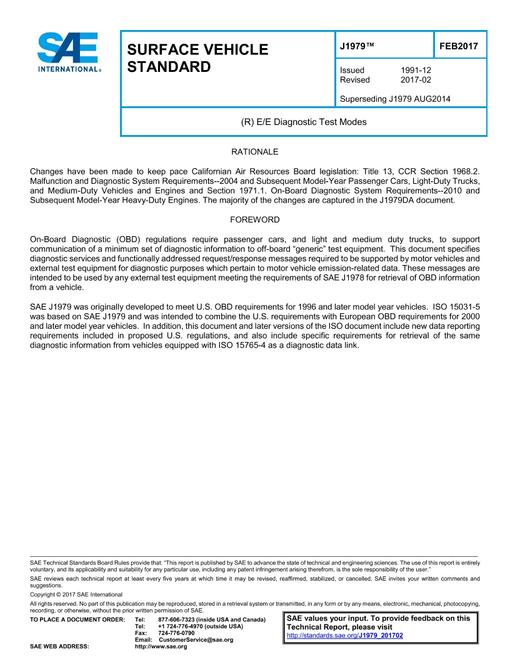

SAE J1979_201702

SAE J1979 – E/E Diagnostic Test Modes

SAE J1979/ISO 15031-5 set includes the communication between the vehicle??????s OBD systems and test equipment implemented across vehicles within the scope of the legislated emissions-related OBD.

To achieve this it is based on the Open Systems Interconnection (OSI) Basic Reference Model in accordance with ISO/IEC 7498-1 and ISO/IEC 10731 which structures communication systems into seven layers. When mapped on this model the services specified are broken into:

1. ?????? Diagnostic services (layer 7) specified in:

   1. ?????? ISO 15031-5/SAE J1979 (emissions-related OBD)

   2. ?????? ISO 27145-3 (WWH-OBD)

2. ?????? Presentation layer (layer 6) specified in:

   1. ?????? ISO 15031-2 SAE J1930-DA

   2. ?????? ISO 15031-5 SAE J1979-DA

   3. ?????? ISO 15031-6 SAE J2012-DA

   4. ?????? ISO 27145-2 SAE J2012-DA

3. ?????? Session layer services (layer 5) specified in:

   1. ?????? ISO 14229-2 supports ISO 15765-4 DoCAN and ISO 14230-4 DoK-Line protocols

   2. ?????? ISO 14229-2 is not applicable to the SAE J1850 and ISO 9141-2 protocols

4. ?????? Transport layer services (layer 4) specified in:

   1. ?????? DoCAN: ISO 15765-2 Transport protocol and network layer services

   2. ?????? SAE J1850: ISO 15031-5/SAE J1979 Emissions-related diagnostic services

   3. ?????? ISO 9141-2: ISO 15031-5/SAE J1979 Emissions-related diagnostic services

   4. ?????? DoK-Line: ISO 14230-4 ISO 15031-5/SAE J1979 Emissions-related diagnostic services

5. ?????? Network layer services (layer 3) specified in:

   1. ?????? DoCAN: ISO 15765-2 Transport protocol and network layer services

   2. ?????? SAE J1850: ISO 15031-5/SAE J1979 Emissions-related diagnostic services

   3. ?????? ISO 9141-2: ISO 15031-5/SAE J1979 Emissions-related diagnostic services

   4. ?????? DoK-Line: ISO 14230-4 ISO 15031-5/SAE J1979 Emissions-related diagnostic services

6. ?????? Data link layer (layer 2) specified in:

   1. ?????? DoCAN: ISO 15765-4 ISO 11898-1 -2

   2. ?????? SAE J1850

   3. ?????? ISO 9141-2

   4. ?????? DoK-Line: ISO 14230-2

7. ?????? Physical layer (layer 1) specified in:

   1. ?????? DoCAN: ISO 15765-4 ISO 11898-1 -2

   2. ?????? SAE J1850

   3. ?????? ISO 9141-2

   4. ?????? DoK-Line: ISO 14230-1

in accordance with Table 1.

Product Details

Published:

02/16/2017

File Size:

1 file 2.9 MB

Note:

This product is unavailable in Ukraine Russia Belarus
