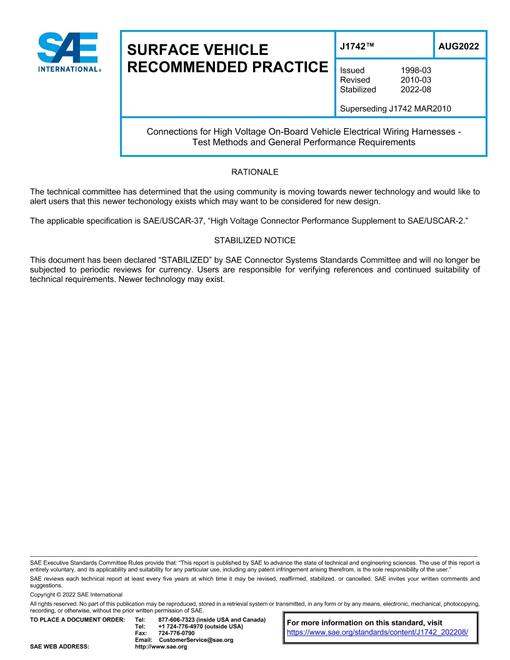

SAE J1742_202208

SAE J1742 – Connections for High Voltage On-Board Vehicle Electrical Wiring Harnesses – Test Methods and General Performance Requirements (Stabilized: Aug 2022)

Procedures included within this specification are intended to cover performance testing at all phases of development production and field analysis of electrical terminals connectors and components that constitute the electrical connection systems in high power road vehicle applications that operates at either 20 V to 600 volts regardless of the current applied or any current greater than or equal to 80 A regardless of the voltage applied.. These procedures are applicable only to terminals used for In-Line Header and Device Connectors and for cable sizes up to 120 mm² (4/0).

In cases where power levels are mixed in the same connector (i.e. sensing or normal 14.5 volt system circuits with High Power Contacts) the High Power Contacts must pass J1742 requirements and all other contacts must pass SAE J2223-2 requirements. The connection system (housing and high power contacts) shall meet J1742 requirements.

Product Details

Published:

08/05/2022

Number of Pages:

27

File Size:

1 file 840 KB

Note:

This product is unavailable in Ukraine Russia Belarus
