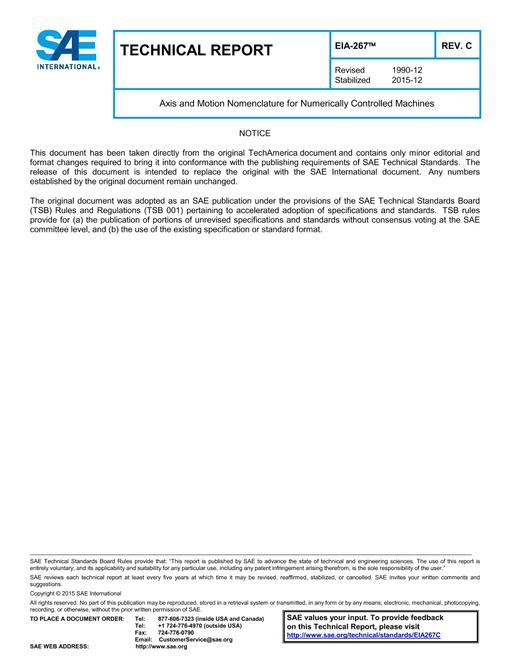

SAE EIA267C

SAE EIA267C – Axis and Motion Nomenclature for Numerically Controlled Machines (Stabilized: May 2016)

This Standard defines a machine coordinate system and motion nomenclature for numerically controlled machines. It is intended to eliminate misunderstandings between manufacturers programmers and users of machine tools to simplify programming to facilitate the interchangeability of recorded data between machines of like configuration and to simplify the training of programmers by the standardization of machine coordinate system and motion nomenclature. This Standard defines a machine coordinate system and machine movements so that a machine tool programmer can describe machining operations without having to know whether the tool approaches the workpiece or the workpiece approaches the tool.

The rules contained in this Standard were developed with the cooperation of private industry and Government and are based on widely accepted industry practice and usage. They are also based in part on standards used in the international machine tool market.

This Standard was prepared by the IE-31 Committee on Numerical Control Systems and Equipment and approved by the Engineering Department Executive Committee (EDEC).

Product Details

Published:

05/31/2016

File Size:

1 file 1.2 MB

Note:

This product is unavailable in Ukraine Russia Belarus
