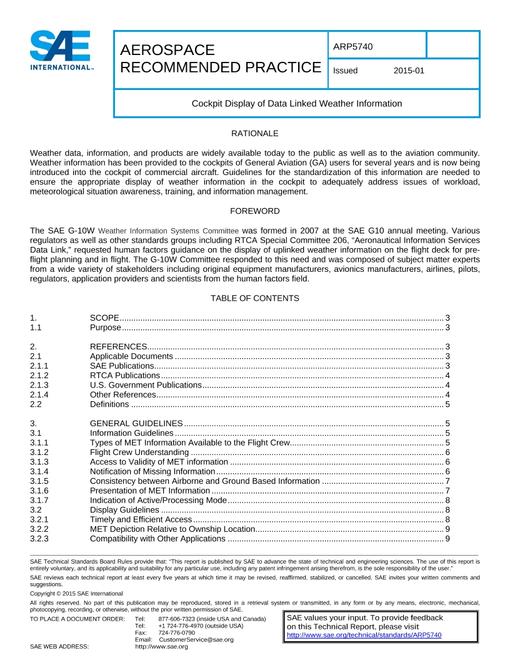

SAE ARP5740

SAE ARP5740 – Cockpit Display of Data Linked Weather Information

This SAE Aerospace Recommended Practice (ARP) addresses the information content for the electronic presentation of data linked weather Meteorological (MET) information used in the cockpit. It defines guidelines for the electronic presentation of MET information (including text graphics textures icons and symbology) to the flight crew.

This ARP is applicable to certified equipment for the electronic display (whether installed or portable) of MET information in the cockpit. This ARP also provides a set of symbols that illustrate the depiction of data linked MET information on flight deck display systems such as Navigation Displays Multi-function Displays and Electronic Flight Bags. These recommendations complement standard symbology guidelines for airborne applications already in existence (see reference section for applicable documents).

Product Details

Published:

01/12/2015

File Size:

1 file 350 KB

Note:

This product is unavailable in Ukraine Russia Belarus
