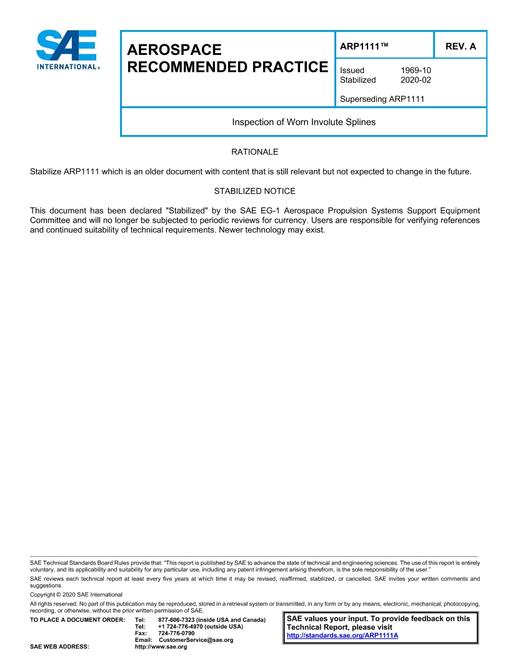

SAE ARP1111A
Original price was: $69.$41Current price is: $41.
Inspection of Worn Involute Splines (Stabilized: Feb 2020)
| Published by | Publication Date | Number of Pages |
| SAE | 2020 | 6 |
SAE ARP1111A – Inspection of Worn Involute Splines (Stabilized: Feb 2020)
This concept for measuring worn splines provides a direct wear depth dimension by utilizing the unworn involute surface as a contact point from which to measure the depth of wear on the spline tooth at the pitch diameter. Fig. 1 shows spline wear patterns and pitch diameter gaging points.
Product Details
- Published:
- 02/03/2020
- Number of Pages:
- 6
- File Size:
- 1 file 910 KB
- Note:
- This product is unavailable in Ukraine Russia Belarus
